Using Google Artificial Intelligence Services in Couchbase N1QL



"If you're not using deep learning, you should be."      Jeff Dean, Google Fellow.

Google has started out with a mission to empower everything and everyone with artificial intelligence (AI). It has open-sourced Tensorflow and supporting libraries to enable developers and enterprises to build and train models, and infer (predict) using those. Building useful enterprise services with this may take time.

Google has also exposed many of the AI services (via Cloud Machine Learning APIs) that can be quite useful in your applications. Extracting features and text from images, translating text from one language to another, and doing sentiment analysis on text can help improve user experience dramatically. There are new businesses and business models enabled by these services alone. Google has done the hard work of building and training the model. You simply call a REST API to exploit their machine learning APIs. These APIs simply act as a declarative service invocation method without needed to understand or maintain the deep infrastructure underneath.

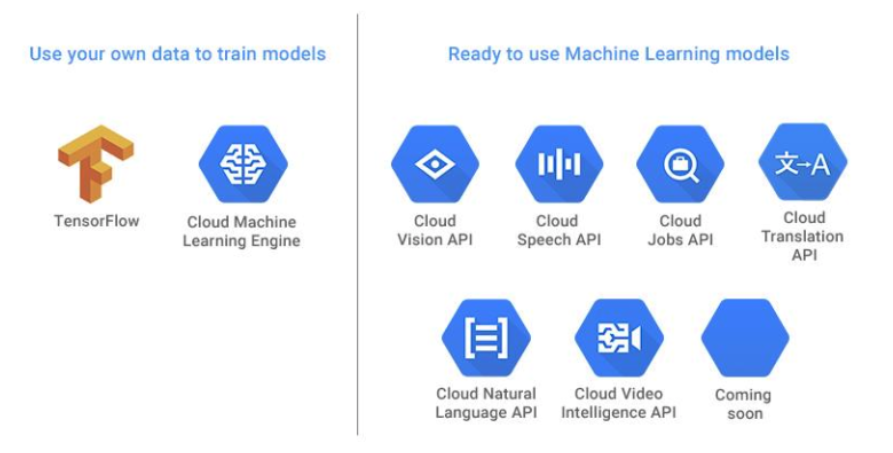

Their machine learning APIs include:

1. Google Vision API
2. Google Speech API
3. Google Natural Language API
4. Google Translation API
5. Google Video Intelligence API
6. And probably many more services by the time this gets published.

These are all provided as REST APIs. See the Google site below for documentation and details of the service.

In Couchbase 5.0, N1QL R&D engineer, Isha Kandaswamy has developed and has written about the CURL() functionality. Using  CURL(), you can use any of REST services with JSON endpoint. An example of using the Google Map API is shown here. The JSON result from the services can be naturally processed in N1QL because N1QL is designed to be SQL for JSON.

Note: You can use CURL() to use AI or other services from any publicly available service.

This blog shows the way to use Google Cloud AI API directly on the data you have in Couchbase, directly with a simple N1QL statement. All of the Google Cloud Machine Learning APIs return JSON. So, CURL() can be used to call any of the services. I'll show you examples of using Google Vision API, Google translation API, and Google Natural Language API.

Note: You need to setup your project and enable each of the services and obtain the API-KEY which you need to pass. In the examples below, I've removed my key. You should replace PUT YOUR KEY HERE with your key.

Let's explore using some of the APIs.

1. Using Google Vision API

You could be an insurance company where customers upload photos of their cars and identifications. You could be a college receiving images of transcripts. You want to extract the text in the image for veracity, for improved user experience, and to make it easier to search for those when needed.

Google has gone from organizing the world's text to the world's multi-media content. Vision API gives you powerful features to extract a lot of metadata within an image and correlate that information to information and other images available on the web.

Let's get the full analysis of the image using Google Vision API.

1

select imagetext

2

from curl("https://vision.googleapis.com/v1/images:annotate?key=PUT YOUR KEY HERE",

3

         {"request": "POST",

4

          "header":"Content-Type: application/json",

5

           "data": '{ "requests": [ { "image": { "source": { "imageUri": "https://blog.couchbase.com/wp-content/uploads/2018/01/Screen-Shot-2018-01-21-at-6.50.38-PM.png" } }, "features": [ { "type": "TEXT_DETECTION" } ] } ] }'}) AS imagetext

This query returns a huge 120K response describing all the polygons, associated texts. Here's the response. Let's issue the query again to and project the things we need. Vision API returns the concatenated list of strings. You can use the SPLIT() or TOKENS() function of N1QL to get each string separately.

1

select r.fullTextAnnotation.text

2

from curl("https://vision.googleapis.com/v1/images:annotate?key=PUT YOUR KEY HERE",

3

{"request": "POST", "header":"Content-Type: application/json", "data": '{ "requests": [ { "image": { "source": { "imageUri": "https://blog.couchbase.com/wp-content/uploads/2018/01/Screen-Shot-2018-01-21-at-6.50.38-PM.png" } }, "features": [ { "type": "TEXT_DETECTION" } ] } ] }'})

4

   AS imagetext UNNEST imagetext.responses r ;

5

​

6

{

7

    "requestID": "c1e41d74-2522-4de9-84ef-2730cae1aebc",

8

    "signature": {

9

        "text": "json"

10

    },

11

    "results": [

2. Google Translation API

This API does what it says: Translate from one language to another. It can automatically detect the source language. Arguments to this API is simply the source content and target language. In this example, let's translate the customer reviews for a hotel from English to French.

1

 SELECT ginfo

2

FROM  (

3

     SELECT r.content as english, curl("https://translation.googleapis.com/language/translate/v2?key=PUT YOUR KEYS HERE",

4

     {"request": "POST", "header":"Content-Type: application/json",

5

     "data": mydata })  AS french

6

     FROM `travel-sample` h USE KEYS "hotel_10142" UNNEST  h.reviews r

7

     LET mydata = '{ "q":"' || r.content || '", "target": "fr"}') AS ginfo;

The result of the query, which includes translation to French is:

1

{

2

    "requestID": "a388a2a4-da40-42df-9af6-93a83f8f3cf1",

3

    "signature": {

4

        "ginfo": "json"

5

    },

6

    "results": [

7

        {

8

            "ginfo": {

9

                "english": "This has got to be the worse experience I have ever had at a hotel. Our reservation was placed two months in advance for a non-smoking room with two beds from July 2-7, 2010. We are staying five nights at $190 a night and this is what we got, a smoking room with one bed, and was only told at the front desk that it was going to be a smoking room, nothing about the one bed, when she asked us how many beds we needed, oh they provided a roll-a-way, only thing is I had to move the chair into the hallway to fit the bed. The t.v. was older than me and the speaker was shot. the bathroom was so small you have to step into the tub to close the door, no fridge in the room, doors are cheap and horrible. only sheets on the bed no blankets/quilts, plus on top of that, i had to pay $14.95 a night for internet. I will never recommend this hotel! how can you take a reservation and state that it will be held till 10am the following morning, yet not provide what was requested in the reservation? What if someone in my party was allergic to smoke, asthmatic, or worse... we wouldn't have gotten a room? completely unacceptable no wonder I will continue to stay at the comfort suites... free internet, modern amenities(flat screens) oh and $85 a night. unsatisfied doesn't even come close to how I feel. the only good thing out of this whole stay was the hot cookie when I got here and mine wasn't even hot. You can take that cookie and... well i'm sure you can figure out the rest. Thanx for nothing!",

10

                "french": {

11

                    "data": {

Since I don't understand French well, I had the review translated to Kannada, my mother tongue. I must say, the translation was decent for a machine. Some sentences were convoluted (almost sounded old Kannada), but overall understandable. Here's that translation.

1

> SELECT ginfo

2

     FROM  (

3

         select r.content, curl("https://translation.googleapis.com/language/translate/v2?key=PUT YOUR KEY HERE",

4

         {"request": "POST", "header":"Content-Type: application/json",

5

         "data": mydata })  as kannada

6

         from `travel-sample` h use keys "hotel_10142" unnest h.reviews r

7

         LET mydata = '{ "q":"' || r.content || '", "source": "en", "target": "kn"}') ginfo;

8

{

9

    "requestID": "079f9dba-2da2-4941-b1be-70865997ec51",

10

    "signature": {

11

        "ginfo": "json"

3. Google Natural Language API

The natural language API does sentiment analysis and entity analysis, parses the intent, and much more. You can invoke these services just be changing the parameters of the service.

Let's use the hotel review data, which does have some emotional content!

1

SELECT ginfo.review, ginfo.sentscore.documentSentiment.magnitude, ginfo.sentscore.documentSentiment.score

2

FROM  (

3

    SELECT r.content AS review,

4

          curl("https://language.googleapis.com/v1/documents:analyzeSentiment?key=PUT YOUR KEY HERE",

5

              {"request": "POST", "header":"Content-Type: application/json", "data": mydata })  AS sentscore

6

    FROM `travel-sample` h USE KEYS "hotel_10142" UNNEST h.reviews r

7

    LET mydata = '{ "encodingType": "UTF8", "document": { "type": "PLAIN_TEXT", "content":"' || r.content || '"} }'

8

    ) ginfo

We've only projected the fields we're interested here, review, magnitude, and sentiment score. See the Google docs for a full description of what these mean and the rest of the data it generates.

1

{

2

    "requestID": "c7b66165-3d18-4a61-8b24-732afdd4714a",

3

    "signature": {

4

        "magnitude": "json",

5

        "review": "json",

6

        "score": "json"

7

    },

8

    "results": [

9

        {

10

            "magnitude": 8.7,

11

            "review": "This has got to be the worse experience I have ever had at a hotel. Our reservation was placed two months in advance for a non-smoking room with two beds from July 2-7, 2010. We are staying five nights at $190 a night and this is what we got, a smoking room with one bed, and was only told at the front desk that it was going to be a smoking room, nothing about the one bed, when she asked us how many beds we needed, oh they provided a roll-a-way, only thing is I had to move the chair into the hallway to fit the bed. The t.v. was older than me and the speaker was shot. the bathroom was so small you have to step into the tub to close the door, no fridge in the room, doors are cheap and horrible. only sheets on the bed no blankets/quilts, plus on top of that, i had to pay $14.95 a night for internet. I will never recommend this hotel! how can you take a reservation and state that it will be held till 10am the following morning, yet not provide what was requested in the reservation? What if someone in my party was allergic to smoke, asthmatic, or worse... we wouldn't have gotten a room? completely unacceptable no wonder I will continue to stay at the comfort suites... free internet, modern amenities(flat screens) oh and $85 a night. unsatisfied doesn't even come close to how I feel. the only good thing out of this whole stay was the hot cookie when I got here and mine wasn't even hot. You can take that cookie and... well i'm sure you can figure out the rest. Thanx for nothing!",

Google natural language API can also extract entities, their web references. Let's look at an example of that as well.

1

SELECT ginfo

2

FROM  (

3

    SELECT name, content,

4

          curl("https://language.googleapis.com/v1/documents:analyzeEntities?key=PUT YOUR KEY HERE",

5

              {"request": "POST", "header":"Content-Type: application/json", "data": mydata })  AS sentscore

6

    FROM `travel-sample` l USE KEYS "landmark_10087"

7

    LET mydata = '{ "encodingType": "UTF8", "document": { "type": "PLAIN_TEXT", "content":"' || l.name || " " || l.content || '"} }'

8

    ) ginfo

9

​

The entity analysis API correctly identifies the location and gives us the web references (URLs) to the landmark. When the references are not quite specific, like the William Team Rooms here, the API can give very high-level generic references.

1

{

2

    "requestID": "4e104224-fe2d-43a8-b86f-aca371987d75",

3

    "signature": {

4

        "ginfo": "json"

5

    },

6

    "results": [

7

        {

8

            "ginfo": {

9

                "content": "During the temperance movement, the idea of "tearooms", places where you could relax and enjoy non-alcoholic refreshments in differently themed rooms, became popular in Glasgow. This one, designed by Charles Rennie Mackintosh in 1904, was the most popular of its time and has been lovingly restored.",

10

                "name": "Willow Tea Rooms",

11

                "sentscore": {

Summary

Couchbase N1QL applications can use Google machine learning APIs easily to improve the customer experience. CURL() provides a flexible method to use the AI services not only from Google but also from other vendors. Try it out.

References

1. N1QL
2. CURL() documentation
3. CURL comes to N1QL
